Turbocharger Cartridge 700716-0003 8971894520 For ISUZU NQR Light Truck Ukrnian Bogdan 4.8L 4HE1XS
PRODUCT DESCRIPTION
| ►Model | GT2560LS |
| ►Turbo No. | 700716-0003 , 700716-0005 , 700716-0006 , 700716-0009 |
| ►OE No. | 8971894520 |
| ►Balancing Test | SCHENCK TB-Sonio |
| ►APPLICATION | ISUZU NQR Light Truck,Ukrnian Bogdan,4.8L 4HE1XS |
►Turbine wheels & compressor wheels size information
| Turbine Wheels | | |
| (A) Inducer | (B) Exducer | Blades |
| 54 | 47 | 9 |
| Compressor Wheels | | |
| (A) Inducer | (B) Exducer | Blades |
| 46.6 | 60.1 | 6/6 |
►Condition
This is a high quality brand new CHRA (cartridge or core assembly) of a turbocharger.
It is balancing tested with a qualified report.
It is carefully tested,without damage and rust.
It is carefully cleaned and packed with safety package.
►Material
| Turbine wheel | K418 |
| Turbine shaft | 42CrMo |
| Compressor wheel | C355(Aluminum casting) |
| Bearing house | HT250(Gary iron) |
| Journal bearing | CW713R |
| Thrust bearing | Brass bar |
| Thrust collar & spacer | 42CrMo |

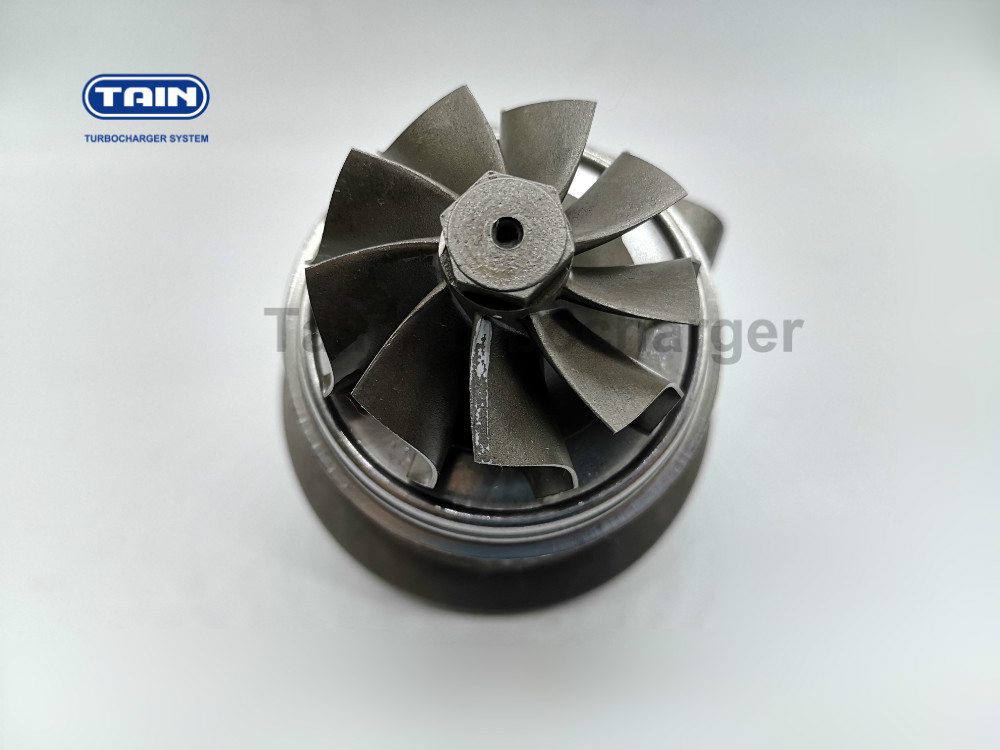

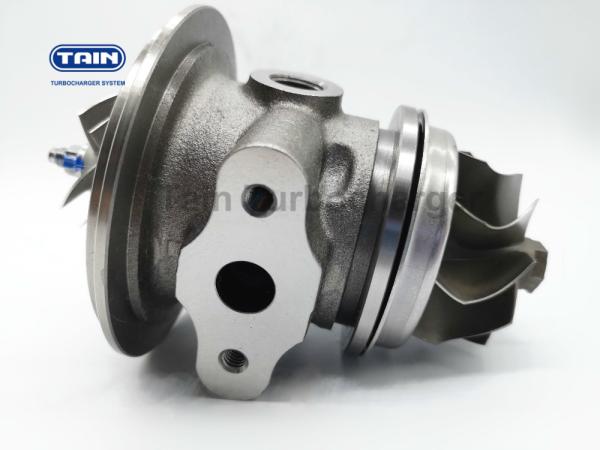

PRODUCT SHOW
PACKING INFORMATION
Inner packing: anti-rust paper,plastic bag,PE foam.
Outer packing: Neutral box,export carton with cushioning and shock proof packaging.
Supply customized package.
WHAT WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
WHO WE ARE
Tain turbo is a specialized turbocharger and turbo parts manufacturer in Wuxi,China.
Established in 1997,covering over 4000 square meters.
Tain devote ourselves to offer the best service.Tain currently supply more than 1000 types of cartridges
and also other turbo parts.
Tain is not just a manufacturer,but also a supplier of customized OEM products.Thanks to our
professional technicians and years of experience.
Tain wins a good reputation,high evaluation among our customers.
